Symboly a značky pneumatiky a e-pneumatiky po anglicky :)

VALVES

AIR OPERATED VALVES

3/2 NC convertible valve



3/2 NC-CO air operated single valve

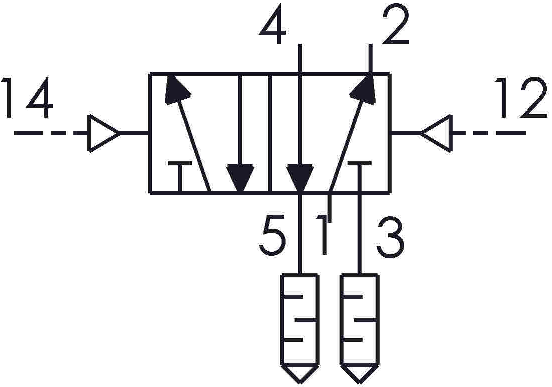

Air operated 5/2 double valve



Air operated 5/2 single valve

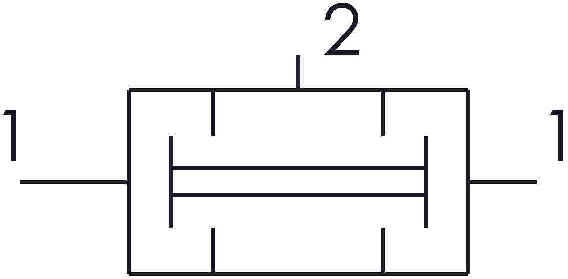

AND function



Block of 2 x 5/2 double valves + 1 x 5/2 single valve

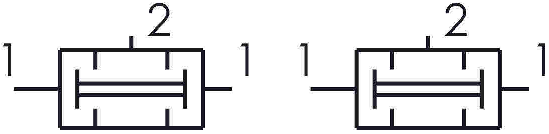

Double AND valve

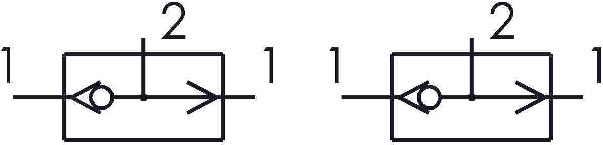

Double OR valve



Check valve

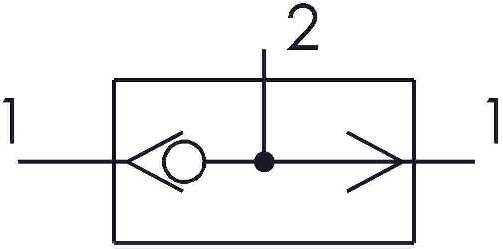

OR function



Quick exhaust valve



Single direction speed controller- double



Speed controller with controlled check valve



Two direction speed controller for single acting cylinder



MANUAL-MECHANICAL VALVES

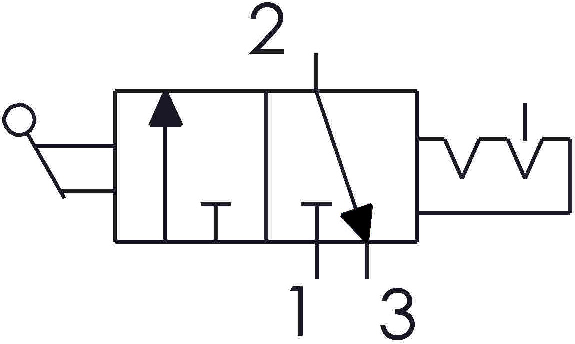

3/2 NC switch operated double valve

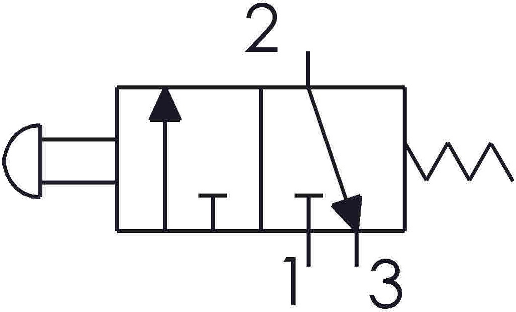

3/2 NC valve operated by an emergency knob



3/2 NC valve operated by push-button



3/2 NC valve operated by roller lever



3/2 NC-NO valve operated by a knob



3/2 NC-NO valve operated by a push-button



3/2 valve operated by a toggle lever



5/2 lever-operated valve



5/2 push-button valve



5/2 valve operated by mushroom push-button



5/2 valve with 2 position selector



5/3 valve with selector



Double 3/2 NC valve operated by a push-button

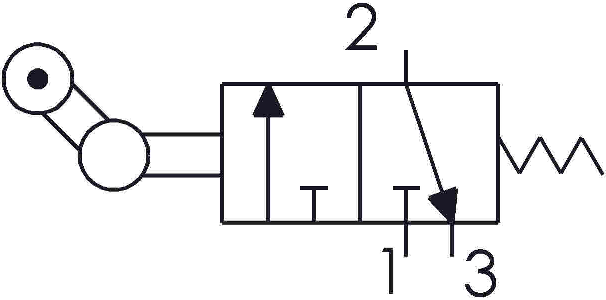

3/2 NC valve operated by one way roller lever

PNEUMATIC ACTUATORS

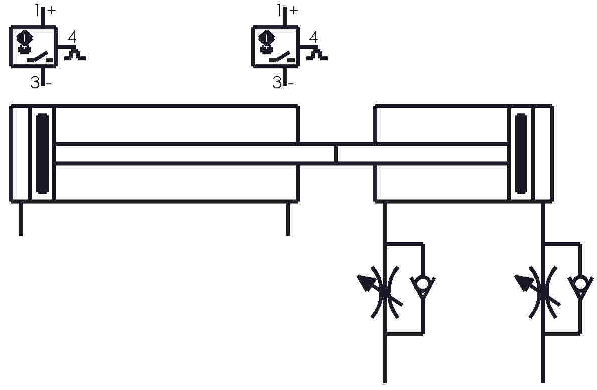

Cylinder with load

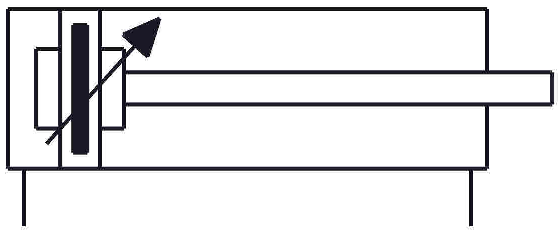

Double acting cylinder with adjustable air cushion

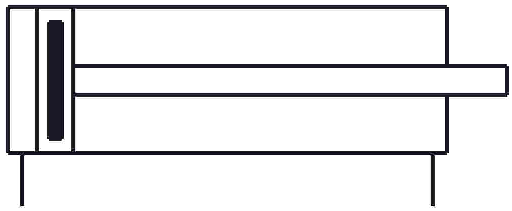

Double acting cylinder with rubber cushion



Dual rod cylinder



Linear-rotary actuator with vacuum pad



Magnetically coupled rodless cylinder



Mechanically coupled rodless cylinder

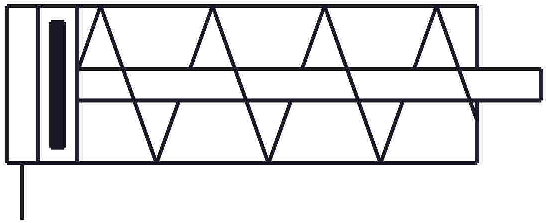

Single acting cylinder



Stroke reading cylinder

PNEUMATIC-ELECTROPNEUMATIC COMPONENTS

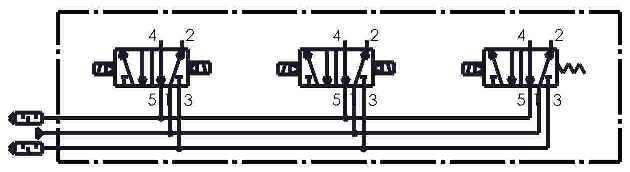

2 solenoid valves block_5-2 double and 1 single



3/2 double solenoid valve



3/2 NC single solenoid valve



3/2 NO single solenoid valve

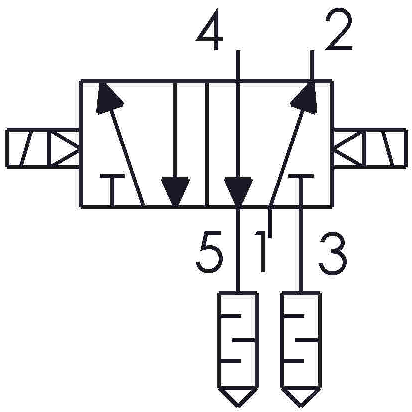

5/2 double solenoid valve

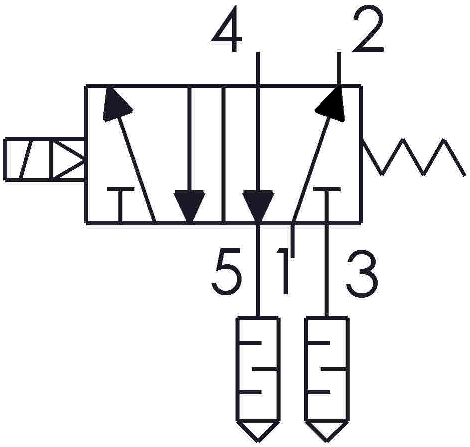

5/2 single solenoid valve

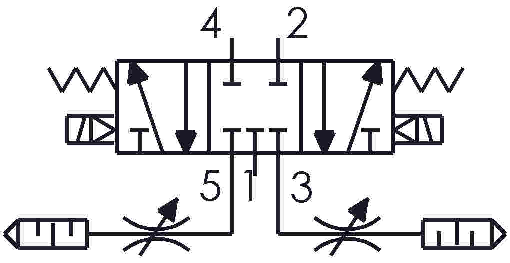

5/3 clossed centre solenoid valve



5/3 solenoid pressure valve



5/3 solenoid valve exhaust centres



Analog pressure sensor



Capacitive detector



Electrical contact pressure switch

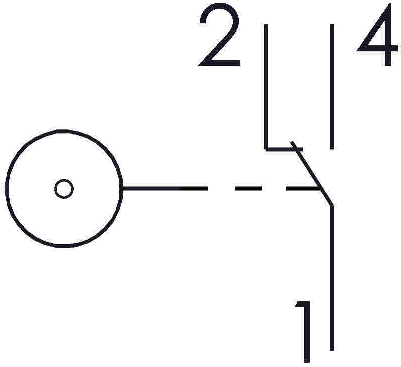

Electrical end of stroke



Inductive detector

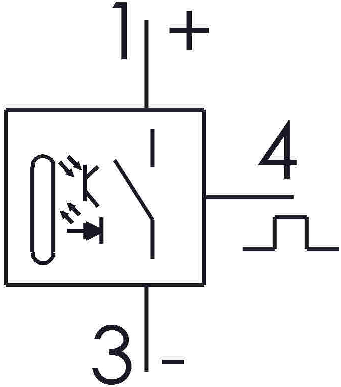

Photoelectric detector

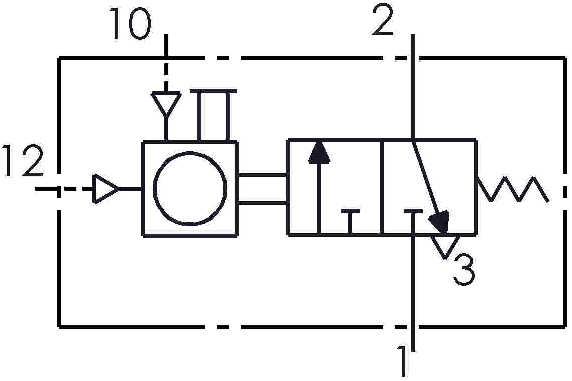

Pneumatic counter



Pressure gauge with electrical contact



Pressure indicator



Pressure switch towards transistor

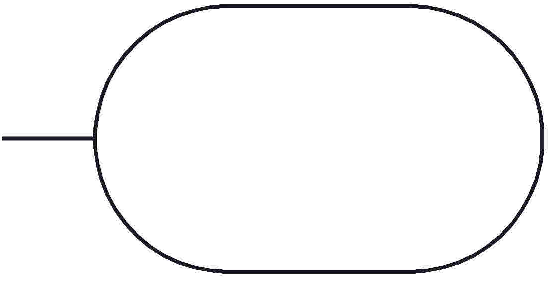

Pressure vessel



Programmable digital pressure switch

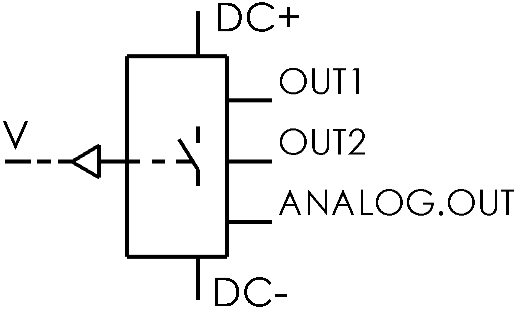

Programmable digital vacuum pressure switch



Proportional flow rate valve

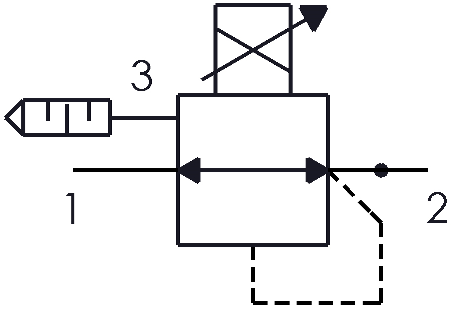

Proportional pressure valve



Reed auto switch



Solid state auto switch

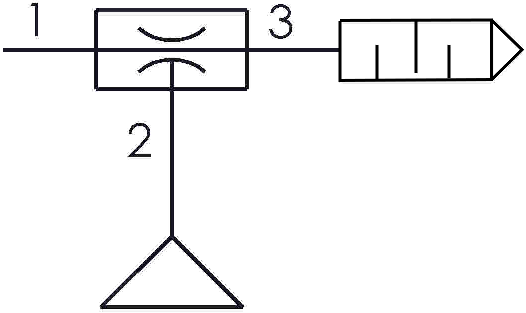

Vacuum ejector with pad



Vacuum pressure switch towards transistor

MEASURING DEVICES

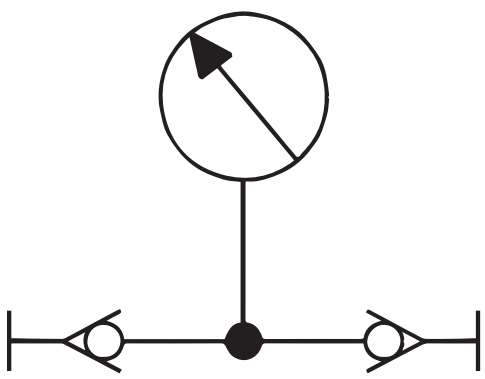

Pressure gauge
